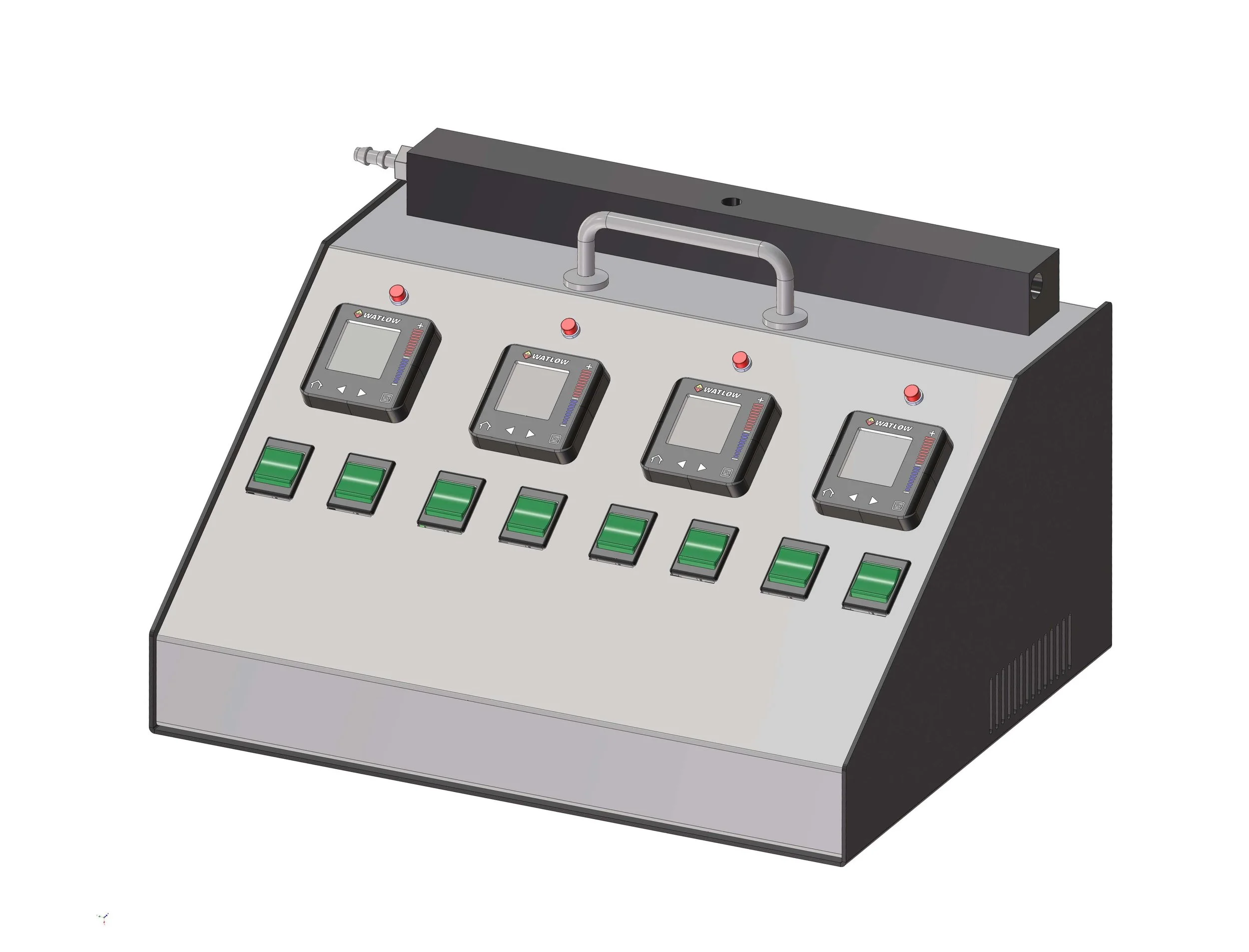

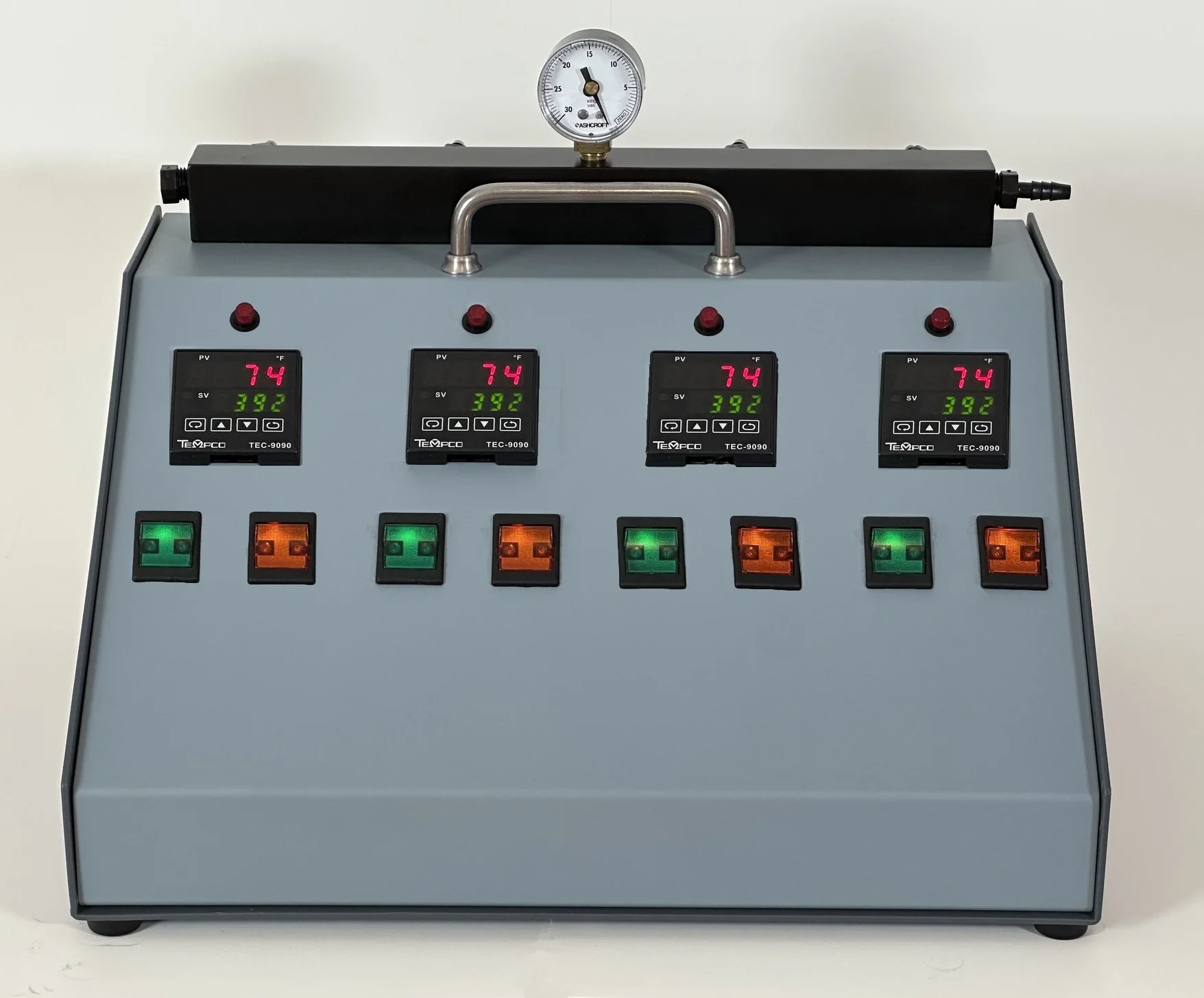

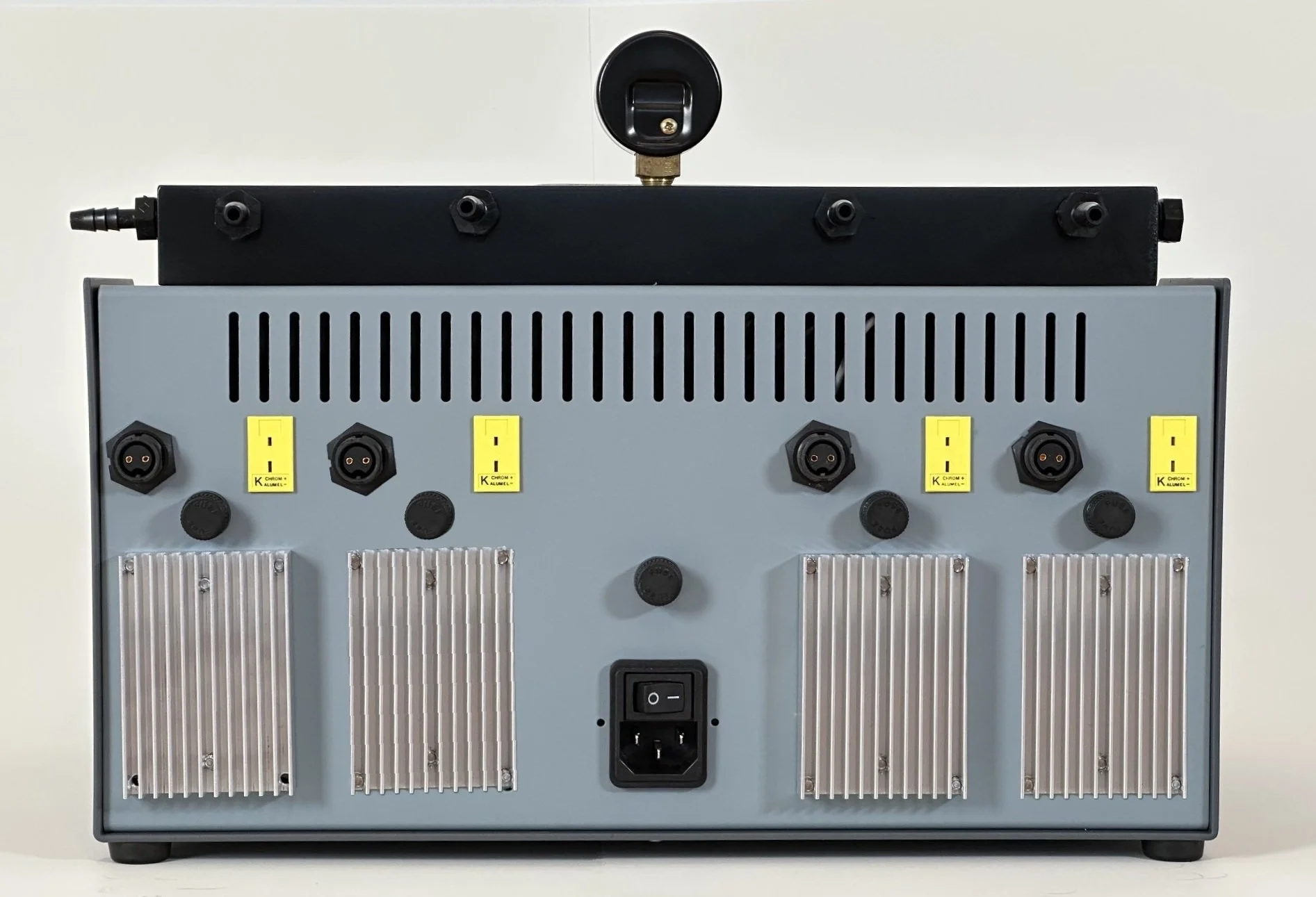

Master Control Models

Bond Technologies controllers are designed specifically for curing strain gauge adhesives at elevated temperature. The programable ramp function allows gradual heating to avoid entrapment of bubbles in the adhesive layer. A soak function maintains a constant temperature ±2°F for the prescribed cure time, then automatically shuts-down the heaters. The controllers include a safeguard to reduce the risk of overheating the bonders if they lose vacuum and detach from the structure. Safeguards are also included for thermocouple signal loss and high temperature excursion.
